Plain Bore Timing Pulley Manufacturer

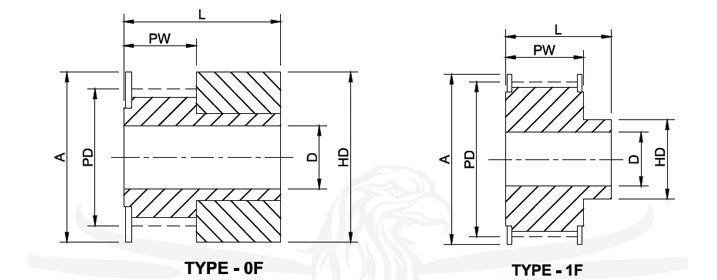

Part No	Pulley Size	Pulley Type	Material	No. Of Teeth	Pd	A	Hd	Pw	L	MIN Bore (D)	Max Bore (D)	APPROX WEIGHT (Kg)
N0016	10 XL0375	0F	ALUMINIUM	10	16.17	22	22	14.3	20	4	6	0.02
N0017	11 XL037	0F	ALUMINIUM	11	17.79	22	22	14.3	20	4	6	0.02
N0018	12 XL037	0F	ALUMINIUM	12	19.40	25	25	14.3	20	4	7	0.03
N0019	13 XL037	0F	ALUMINIUM	13	21.02	28	28	14.3	20	4	7	0.04
N0020	14 XL037	0F	ALUMINIUM	14	22.64	28	28	14.3	20	4	10	0.05
N0021	15 XL037	1F	ALUMINIUM	15	24.26	28	15	14.3	20	6	10	0.05
N0022	16 XL037	1F	ALUMINIUM	16	25.87	32	18	14.3	20	6	10	0.06
N0023	17 XL037	1F	ALUMINIUM	17	27.49	35	20	14.3	20	6	13	0.07
N0024	18 XL037	1F	ALUMINIUM	18	29.11	35	20	14.3	20	6	13	0.08
N0025	19 XL037	1F	ALUMINIUM	19	30.72	38	20	14.3	22	6	13	0.09
N0026	20 XL037	1F	ALUMINIUM	20	32.34	38	23.5	14.3	22	6	15	0.11
N0027	21 XL037	1F	ALUMINIUM	21	33.96	38	23.5	14.3	22	6	15	0.12
N0028	22 XL037	1F	ALUMINIUM	22	35.57	41	25	14.3	22	6	16	0.13
N0029	24 XL037	1F	ALUMINIUM	24	38.81	44	30	14.3	22	6	20	0.15
N0030	26 XL037	1F	ALUMINIUM	26	42.04	48	32	14.3	22	8	20	0.07
N0031	27 XL037	1F	ALUMINIUM	27	43.66	48	32	14.3	22	8	20	0.08
N0032	28 XL037	1F	ALUMINIUM	28	45.28	51	34	14.3	22	8	22	0.09
N0033	26 XL037	1F	ALUMINIUM	30	48.51	54	38	14.3	22	8	25	0.11
N0034	32 XL037	1F	ALUMINIUM	32	51.74	57	40	14.3	25	8	25	0.12
N0035	34 XL037	1F	ALUMINIUM	34	54.98	62	45	14.3	25	8	29	0.13
N0036	35 XL037	1F	ALUMINIUM	35	56.60	62	45	14.3	25	8	29	0.14
N0037	36 XL037	1F	ALUMINIUM	36	58.21	67	45	14.3	25	8	29	0.14
N0038	38 XL037	1F	ALUMINIUM	38	61.45	67	45	14.3	25	8	29	0.16
N0039	40 XL037	1F	ALUMINIUM	40	64.68	73	50	14.3	25	8	30	0.18
N0040	42 XL037	1F	ALUMINIUM	42	67.91	77	50	14.3	25	8	30	0.19
N0041	44 XL037	1F	ALUMINIUM	44	71.15	80	55	14.3	25	8	35	0.22
N0042	48 XL037	1F	ALUMINIUM	48	77.62	84	60	14.3	25	10	40	0.26
N0043	60 XL037	1F	ALUMINIUM	60	97.02	108	75	14.3	25	10	55	0.41
N0044	72 XL037	1F	ALUMINIUM	72	116.42	124	85	14.3	25	10	65	0.56

XL(1/5”) Plain Bore timing Pulley Ref. XL037.pdf
