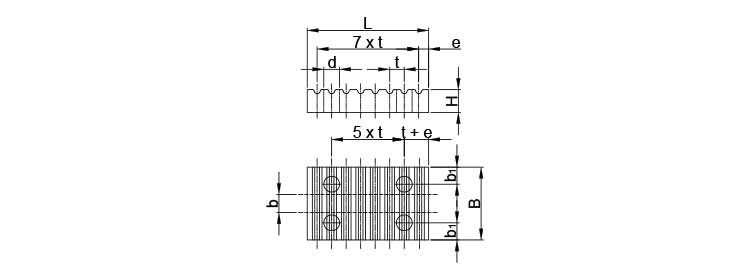

XL, L & H Pitch Clam Plate
Technical Specifications
| XL Pitch Clam Plate Ref. CP-XL | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Designation | Pitch T(MM) | Belts Width b(MM) | Material | B(MM) | b1(MM) | L(MM) | e(MM) | H(MM) | d(MM) | Weight(KG) |
| CP-XL 037 | 5.080 | 9.53 | ALUMINIUM | 28.5 | 6.0 | 42.5 | 3.5 | 8.0 | 5.5 | 0.025 |
| CP-XL 050 | 5.080 | 12.70 | ALUMINIUM | 32.0 | 6.0 | 42.5 | 3.5 | 8.0 | 5.5 | 0.027 |
| CP-XL 075 | 5.080 | 19.05 | ALUMINIUM | 38.0 | 6.0 | 42.5 | 3.5 | 8.0 | 5.5 | 0.032 |
| CP-XL 100 | 5.080 | 25.40 | ALUMINIUM | 45.0 | 6.0 | 42.5 | 3.5 | 8.0 | 5.5 | 0.038 |
| L Pitch Clam Plate Ref. CP-L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Designation | Pitch T(MM) | Belts Width b(MM) | Material | B(MM) | b1(MM) | L(MM) | e(MM) | H(MM) | d(MM) | Weight(KG) |
| CP-L 050 | 9.525 | 12.70 | ALUMINIUM | 39.0 | 8.0 | 76.6 | 5.0 | 15.0 | 9.0 | 0.104 |
| CP-L 075 | 9.525 | 19.05 | ALUMINIUM | 45.0 | 8.0 | 76.6 | 5.0 | 15.0 | 9.0 | 0.121 |
| CP-L 100 | 9.525 | 25.40 | ALUMINIUM | 51.5 | 8.0 | 76.6 | 5.0 | 15.0 | 9.0 | 0.140 |
| CP-L 150 | 9.525 | 38.10 | ALUMINIUM | 64.0 | 8.0 | 76.6 | 5.0 | 15.0 | 9.0 | 0.177 |
| CP-L 200 | 9.252 | 50.80 | ALUMINIUM | 77.0 | 8.0 | 76.6 | 5.0 | 15.0 | 9.0 | 0.215 |
| H Pitch Clam Plate Ref. CP-H | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Designation | Pitch T(MM) | Belts Width b(MM) | Material | B(MM) | b1(MM) | L(MM) | e(MM) | H(MM) | d(MM) | Weight(KG) |
| CP-H 075 | 12.700 | 19.05 | ALUMINIUM | 51.0 | 10.0 | 106.9 | 9.0 | 22.0 | 11.0 | 0.075 |
| CP-H 100 | 12.700 | 25.40 | ALUMINIUM | 57.5 | 10.0 | 106.9 | 9.0 | 22.0 | 11.0 | 0.100 |
| CP-H 150 | 12.700 | 38.10 | ALUMINIUM | 70.0 | 10.0 | 106.9 | 9.0 | 22.0 | 11.0 | 0.150 |
| CP-H-200 | 12.700 | 50.80 | ALUMINIUM | 83.0 | 10.0 | 106.9 | 9.0 | 22.0 | 11.0 | 0.200 |
| CP-H 300 | 12.700 | 76.20 | ALUMINIUM | 108.0 | 10.0 | 106.9 | 9.0 | 22.0 | 11.0 | 0.300 |
| CP-H 400 | 12.700 | 101.60 | ALUMINIUM | 134.0 | 10.0 | 106.9 | 9.0 | 22.0 | 11.0 | 0.400 |
