XH(7/8”) 400 Plain Bore timing Pulley

XH(7/8”) Plain Bore timing Pulley Ref. XH400

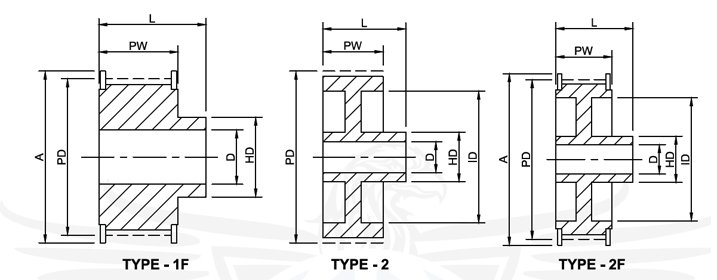

Plain Bore timing Pulley xh-400

Technical Specifications

Part No Pulley Size Pulley Type Material No. Of Teeth Pd A Hd Id Pw L MIN Bore (D) Max Bore (D) APPROX WEIGHT (Kg)
N0271 18 XH400 1F STEEL 18 127.34 140 100 - 118 132 32 67 8.90
N0272 19 XH400 1F STEEL 19 134.41 146 100 - 118 132 32 67 10.65
N0273 20 XH400 1F STEEL 20 141.49 155 100 - 118 132 32 67 11.80
N0274 21 XH400 1F STEEL 21 148.56 160 110 - 118 132 32 75 13.20
N0275 22 XH400 1F STEEL 22 155.64 168 110 - 118 132 32 75 14.73
N0276 24 XH400 1F STEEL 24 169.79 184 120 - 118 132 32 80 17.80
N0277 25 XH400 1F STEEL 25 176.86 188 120 - 118 132 32 80 19.40
N0278 26 XH400 1F STEEL 26 183.93 198 120 - 118 132 32 80 21.10
N0279 27 XH400 1F STEEL 27 191.01 200 120 - 118 132 32 80 22.80
N0280 28 XH400 1F STEEL 28 198.09 212 150 - 118 132 32 110 22.60
N0281 30 XH400 1F STEEL 30 212.23 226 150 - 118 132 32 110 28.70
N0282 32 XH400 1F STEEL 32 226.38 240 150 184 118 132 32 110 32.50
N0283 34 XH400 1F STEEL 34 240.53 256 150 198 118 132 32 110 36.50
N0284 38 XH400 2F CAST IRON 38 268.83 286 150 227 118 132 32 135 40.00
N0285 40 XH400 2F CAST IRON 40 282.98 296 150 241 118 132 32 135 32.90
N0286 46 XH400 2 CAST IRON 46 325.42 - 175 283 118 132 32 135 38.00
N0287 48 XH400 2 CAST IRON 48 339.57 - 175 297 118 132 32 135 41.00
N0288 58 XH400 2 CAST IRON 58 410.32 - 175 368 118 132 32 135 46.00
N0289 60 XH400 2 CAST IRON 60 424.47 - 175 382 118 132 32 135 47.00
N0290 70 XH400 2 CAST IRON 70 495.21 - 175 453 118 132 32 135 66.00
N0291 72 XH400 2 CAST IRON 72 509.36 - 175 467 118 132 32 135 68.00
N0292 78 XH400 2 CAST IRON 78 551.81 - 175 510 118 132 32 135 71.00
N0293 80 XH400 2 CAST IRON 80 565.95 - 175 524 118 132 32 135 73.00
N0294 82 XH400 2 CAST IRON 82 580.10 - 175 538 118 132 32 135 74.50
N0295 84 XH400 2 CAST IRON 84 594.25 - 175 552 118 132 32 135 78.00
N0296 94 XH400 2 CAST IRON 94 665.00 - 175 623 118 132 32 135 86.00
N0297 96 XH400 2 CAST IRON 96 679.15 - 175 637 118 132 32 135 98.00
N0298 118 XH400 2 CAST IRON 118 834.78 - 175 792 118 132 32 135 142.00
N0299 120 XH400 2 CAST IRON 120 848.93 - 175 806 118 132 32 135 156.00
