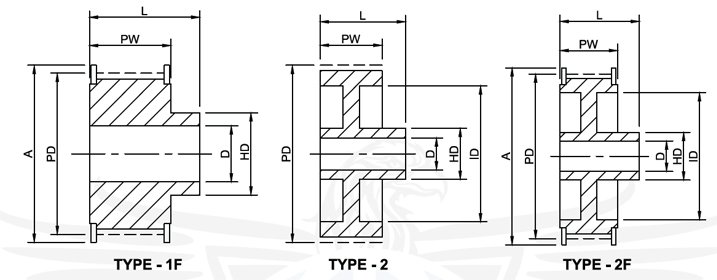

XH(7/8”) Plain Bore timing Pulley Ref. XH200
![Plain Bore timing Pulley xh-200](images/product/plain-bore/xh-200.jpg)
Technical Specifications
Part No | Pulley Size | Pulley Type | Material | No. Of Teeth | Pd | A | Hd | Id | Pw | L | MIN Bore (D) | Max Bore (D) | APPROX WEIGHT (Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N0213 | 18 XH200 | 1F | STEEL | 18 | 127.34 | 140 | 100 | - | 65 | 80 | 24 | 67 | 5.90 |
N0214 | 19 XH200 | 1F | STEEL | 19 | 134.41 | 146 | 100 | - | 65 | 80 | 24 | 67 | 6.50 |
N0215 | 20 XH200 | 1F | STEEL | 20 | 141.49 | 155 | 100 | - | 65 | 80 | 24 | 67 | 7.20 |
N0216 | 21 XH200 | 1F | STEEL | 21 | 148.56 | 160 | 110 | - | 65 | 80 | 24 | 75 | 7.90 |
N0217 | 22 XH200 | 1F | STEEL | 22 | 155.64 | 168 | 110 | - | 65 | 80 | 24 | 75 | 8.70 |
N0218 | 24 XH200 | 1F | STEEL | 24 | 169.79 | 184 | 120 | - | 65 | 80 | 24 | 80 | 10.60 |
N0219 | 25 XH200 | 1F | STEEL | 25 | 176.86 | 188 | 120 | - | 65 | 80 | 24 | 80 | 11.40 |
N0220 | 26 XH200 | 1F | STEEL | 26 | 183.93 | 198 | 120 | - | 65 | 80 | 24 | 80 | 12.20 |
N0221 | 27 XH200 | 1F | STEEL | 27 | 191.01 | 200 | 120 | - | 65 | 80 | 24 | 80 | 13.50 |
N0222 | 28 XH200 | 1F | STEEL | 28 | 198.09 | 212 | 150 | - | 65 | 80 | 24 | 110 | 14.80 |
N0223 | 30 XH200 | 1F | STEEL | 30 | 212.23 | 226 | 150 | - | 65 | 80 | 24 | 110 | 16.60 |
N0224 | 32 XH200 | 1F | STEEL | 32 | 226.38 | 240 | 150 | 184 | 65 | 80 | 24 | 110 | 17.90 |
N0225 | 34 XH200 | 1F | STEEL | 34 | 240.53 | 256 | 150 | 198 | 65 | 80 | 24 | 110 | 18.20 |
N0226 | 38 XH200 | 2F | CAST IRON | 38 | 268.83 | 268 | 150 | 227 | 65 | 100 | 28 | 110 | 19.00 |
N0227 | 40 XH200 | 2F | CAST IRON | 40 | 282.98 | 296 | 150 | 241 | 65 | 100 | 28 | 110 | 22.10 |
N0228 | 46 XH200 | 2 | CAST IRON | 46 | 325.42 | - | 150 | 283 | 65 | 100 | 28 | 110 | 26.00 |
N0229 | 48 XH200 | 2 | CAST IRON | 48 | 339.57 | - | 150 | 297 | 65 | 100 | 28 | 110 | 27.60 |
N0230 | 58 XH200 | 2 | CAST IRON | 58 | 410.32 | - | 150 | 368 | 65 | 100 | 28 | 110 | 27.60 |
N0231 | 60 XH200 | 2 | CAST IRON | 60 | 424.47 | - | 150 | 382 | 65 | 100 | 28 | 110 | 22.10 |
N0232 | 70 XH200 | 2 | CAST IRON | 70 | 495.21 | - | 190 | 453 | 65 | 100 | 28 | 170 | 39.00 |
N0233 | 72 XH200 | 2 | CAST IRON | 72 | 509.36 | - | 190 | 467 | 65 | 100 | 28 | 170 | 42.00 |
N0234 | 78 XH200 | 2 | CAST IRON | 78 | 551.81 | - | 190 | 510 | 65 | 100 | 28 | 170 | 48.00 |
N0235 | 80 XH200 | 2 | CAST IRON | 80 | 565.95 | - | 190 | 524 | 65 | 100 | 28 | 170 | 51.00 |
N0236 | 82 XH200 | 2 | CAST IRON | 82 | 580.10 | - | 190 | 538 | 65 | 100 | 28 | 170 | 54.00 |
N0237 | 84 XH200 | 2 | CAST IRON | 84 | 594.25 | - | 190 | 552 | 65 | 100 | 28 | 170 | 57.00 |
N0238 | 94 XH200 | 2 | CAST IRON | 94 | 665.00 | - | 190 | 623 | 65 | 100 | 28 | 170 | 64.00 |
N0239 | 96 XH200 | 2 | CAST IRON | 96 | 679.15 | - | 190 | 637 | 65 | 100 | 28 | 170 | 67.00 |
N0240 | 118 XH200 | 2 | CAST IRON | 118 | 834.78 | - | 190 | 792 | 65 | 100 | 28 | 170 | 88.00 |
N0241 | 120 XH200 | 2 | CAST IRON | 120 | 848.93 | - | 190 | 806 | 65 | 100 | 28 | 170 | 90.00 |
