T2.5mm Plain Bore timing Pulley Ref. T2.5 06W
Technical Specifications

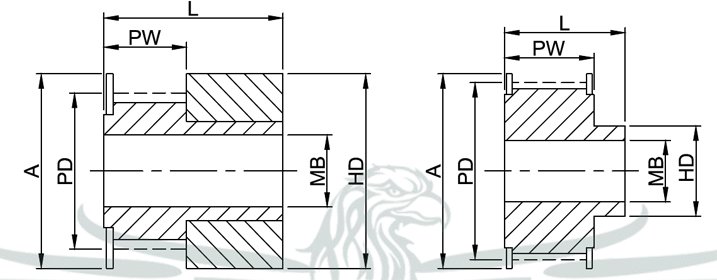

| Part No | Pulley Size | Pulley Type | Material | No. Of Teeth | Pd | A | Hd | Pw | L | MIN Bore (D) | Max Bore | APPROX WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N0898 | 16 T2.5 / 12 - 2 | 0F | ALUMINIUM | 12 | 9.55 | 13.00 | 13.00 | 9.00 | 16.00 | 4.00 | 4.00 | 0.01 |
| N0899 | 16 T2.5 / 14 - 2 | 0F | ALUMINIUM | 14 | 11.14 | 15.00 | 15.00 | 9.00 | 16.00 | 4.00 | 6.00 | 0.01 |
| N0900 | 16 T2.5 / 15 - 2 | 0F | ALUMINIUM | 15 | 11.94 | 15.00 | 15.00 | 9.00 | 16.00 | 4.00 | 6.00 | 0.01 |
| N0901 | 16 T2.5 / 16 - 2 | 0F | ALUMINIUM | 16 | 12.73 | 16.00 | 16.00 | 9.00 | 16.00 | 4.00 | 7.00 | 0.01 |
| N0902 | 16 T2.5 / 18 - 2 | 1F | ALUMINIUM | 18 | 14.32 | 17.50 | 10.00 | 10.00 | 16.00 | 4.00 | 6.00 | 0.01 |
| N0903 | 16 T2.5 / 19 - 2 | 1F | ALUMINIUM | 19 | 15.12 | 18.00 | 10.00 | 16.00 | 16.00 | 4.00 | 6.00 | 0.01 |
| N0904 | 16 T2.5 / 20 - 2 | 1F | ALUMINIUM | 20 | 15.92 | 20.00 | 10.00 | 10.00 | 16.00 | 4.00 | 6.00 | 0.01 |
| N0905 | 16 T2.5 / 22 - 2 | 1F | ALUMINIUM | 22 | 17.51 | 23.00 | 10.00 | 10.00 | 16.00 | 4.00 | 6.00 | 0.01 |
| N0906 | 16 T2.5 / 24 - 2 | 1F | ALUMINIUM | 24 | 19.10 | 23.00 | 12.00 | 10.00 | 16.00 | 4.00 | 6.00 | 0.01 |
| N0907 | 16 T2.5 / 25 - 2 | 1F | ALUMINIUM | 25 | 19.90 | 23.00 | 10.00 | 10.00 | 16.00 | 4.00 | 8.00 | 0.01 |
| N0908 | 16 T2.5 / 26 - 2 | 1F | ALUMINIUM | 26 | 20.70 | 25.00 | 14.00 | 10.00 | 16.00 | 4.00 | 8.00 | 0.01 |
| N0909 | 16 T2.5 / 28 - 2 | 1F | ALUMINIUM | 28 | 22.28 | 25.00 | 14.00 | 10.00 | 16.00 | 4.00 | 8.00 | 0.02 |
| N0910 | 16 T2.5 / 30 - 2 | 1F | ALUMINIUM | 30 | 23.87 | 28.00 | 16.00 | 10.00 | 16.00 | 6.00 | 10.00 | 0.02 |
| N0911 | 16 T2.5 / 32 - 2 | 1F | ALUMINIUM | 32 | 25.47 | 32.00 | 16.00 | 10.00 | 16.00 | 6.00 | 10.00 | 0.02 |
| N0912 | 16 T2.5 / 36 - 2 | 1F | ALUMINIUM | 36 | 28.65 | 36.00 | 20.00 | 10.00 | 16.00 | 6.00 | 12.00 | 0.03 |
| N0913 | 16 T2.5 / 40 - 2 | 1F | ALUMINIUM | 40 | 31.83 | 38.00 | 22.00 | 10.00 | 16.00 | 6.00 | 12.00 | 0.03 |
| N0914 | 16 T2.5 / 44 - 2 | 1F | ALUMINIUM | 44 | 35.02 | 42.00 | 24.00 | 10.00 | 16.00 | 6.00 | 14.00 | 0.04 |
| N0915 | 16 T2.5 / 48 - 2 | 1F | ALUMINIUM | 48 | 38.20 | 42.00 | 26.00 | 10.00 | 16.00 | 6.00 | 18.00 | 0.05 |
| N0916 | 16 T2.5 / 60 - 2 | 1F | ALUMINIUM | 60 | 47.75 | 52.00 | 34.00 | 10.00 | 16.00 | 8.00 | 22.00 | 0.07 |
