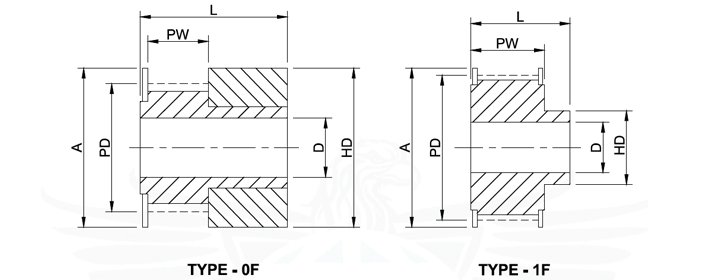

MXL Plain Bore timing Pulley Ref. MXL 025
![MXL Plain Bore timing Pulley Ref. MXL 025](images/product/plain-bore/mxl.jpg)
Technical Specifications
Part No | Pulley Size | Pulley Type | Material | No. Of Teeth | Pd | A | Hd | Pw | L | MIN Bore (D) | Max Bore | APPROX WEIGHT (Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
N0001 | 16 MXL 025 | 0F | ALUMINIUM | 16 | 10.35 | 15.00 | 15.00 | 8.5 | 16.00 | 4.00 | 4.00 | 0.01 |
N0002 | 18 MXL 025 | 0F | ALUMINIUM | 18 | 11.64 | 16.00 | 16.00 | 8.5 | 16.00 | 4.00 | 6.00 | 0.01 |
N0003 | 20 MXL 025 | 0F | ALUMINIUM | 20 | 12.94 | 16.00 | 16.00 | 8.5 | 16.00 | 4.00 | 7.00 | 0.01 |
N0004 | 22 MXL 025 | 0F | ALUMINIUM | 22 | 14.23 | 17.50 | 17.50 | 8.5 | 16 | 4.00 | 8.00 | 0.01 |
N0005 | 24 MXL 025 | 0F | ALUMINIUM | 24 | 15.52 | 20.00 | 20.00 | 8.5 | 16.00 | 4.00 | 8.00 | 0.01 |
N0006 | 28 MXL 025 | 0F | ALUMINIUM | 28 | 18.11 | 25.00 | 25.00 | 8.5 | 16.00 | 4.00 | 10.00 | 0.01 |
N0007 | 30 MXL 025 | 1F | ALUMINIUM | 30 | 19.40 | 25.00 | 12.00 | 11.00 | 16.00 | 4.00 | 6.5 | 0.02 |
N0008 | 32 MXL 025 | 1F | ALUMINIUM | 32 | 20.70 | 25.00 | 14.00 | 11.00 | 16.00 | 5.00 | 8.5 | 0.02 |
N0009 | 36 MXL 025 | 1F | ALUMINIUM | 36 | 23.29 | 28.00 | 16.00 | 11.00 | 16.00 | 5.00 | 8.5 | 0.02 |
N0010 | 40 MXL 025 | 1F | ALUMINIUM | 40 | 25.87 | 32.00 | 18.00 | 11.00 | 16.00 | 5.00 | 11.5 | 0.03 |
N0011 | 42 MXL 025 | 1F | ALUMINIUM | 42 | 27.17 | 32.00 | 18.00 | 11.00 | 16.00 | 5.00 | 11.5 | 0.03 |
N0012 | 44 MXL 025 | 1F | ALUMINIUM | 44 | 28.46 | 37.00 | 18.00 | 11.00 | 16.00 | 5.00 | 12.7.00 | 0.03 |
N0013 | 48 MXL 025 | 1F | ALUMINIUM | 48 | 31.05 | 37.00 | 20.00 | 11.00 | 16.00 | 5.00 | 14.00 | 0.03 |
N0014 | 60 MXL 025 | 1F | ALUMINIUM | 60 | 38.81 | 44.00 | 24.00 | 11.00 | 16.00 | 5.00 | 18.5 | 0.04 |
N0015 | 72 MXL 025 | 1F | ALUMINIUM | 72 | 46.57 | 52.00 | 33.00 | 11.00 | 16.00 | 4.00 | 22.5 | 0.05 |
