Plain Bore Timing Pulley Manufacturer

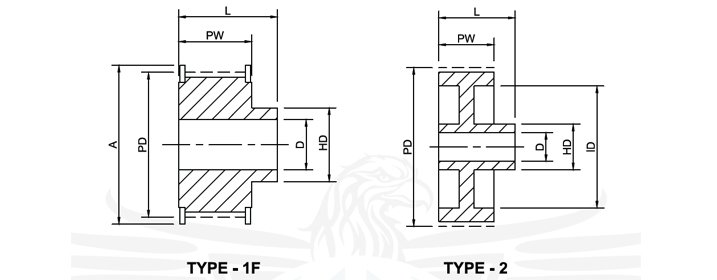

Part No	Pulley Size	Pulley Type	Material	No. Of Teeth	Pd	A	Hd	Id	Pw	L	MIN Bore (D)	Max Bore (D)	APPROX WEIGHT (Kg)
N0192	14 H300	1F	STEEL	14	56.60	64	45	-	86	100	11	28	1.40
N0193	16 H300	1F	STEEL	16	64.68	70	45	-	86	100	11	30	1.80
N0194	18 H300	1F	STEEL	18	72.77	79	55	-	86	100	19	36	2.38
N0195	19 H300	1F	STEEL	19	76.81	83	60	-	86	100	19	40	2.60
N0196	20 H300	1F	STEEL	20	80.85	87	62	-	86	100	19	41	3.10
N0197	21 H300	1F	STEEL	21	84.89	91	65	-	86	100	19	43	3.32
N0198	22 H300	1F	STEEL	22	88.94	93	68	-	86	100	19	45	3.67
N0199	24 H300	1F	STEEL	24	97.02	102	72	-	86	100	19	47	4.40
N0200	26 H300	1F	STEEL	26	105.11	112	80	-	86	100	19	54	5.20
N0201	28 H300	1F	STEEL	28	113.19	120	80	-	86	100	19	54	5.60
N0202	30 H300	1F	STEEL	30	121.29	128	80	-	86	100	19	54	7.00
N0203	32 H300	1F	STEEL	32	129.36	135	80	-	86	100	19	54	7.80
N0204	36 H300	1F	STEEL	36	145.53	150	80	-	86	100	19	48	9.90
N0205	40 H300	1F	STEEL	40	161.70	168	80	-	86	100	19	48	12.20
N0206	44 H300	2	CAST IRON	44	177.87	-	80	150	86	100	24	48	15.00
N0207	48 H300	2	CAST IRON	48	194.04	-	90	166	86	100	24	54	11.40
N0208	60 H300	2	CAST IRON	60	242.55	-	90	215	86	100	24	54	13.30
N0209	72 H300	2	CAST IRON	72	291.06	-	100	263	86	100	28	62	19.00
N0210	84 H300	2	CAST IRON	84	339.576	-	100	312	86	100	28	62	20.00
N0211	96 H300	2	CAST IRON	96	388.08	-	120	360	86	100	28	70	27.00
N0212	120 H300	2	CAST IRON	120	485.10	-	120	458	86	100	28	70	33.00

H(1/2”) Plain Bore timing Pulley Ref. H300.pdf
