Plain Bore Timing Pulley Manufacturer

Part No	Pulley Size	Pulley Type	Material	No. Of Teeth	Pd	A	Hd	Id	Pw	L	MIN Bore (D)	Max Bore (D)	APPROX WEIGHT (Kg)
N0171	14 H200	1F	STEEL	14	56.60	64	45	-	59	70	11	28	1.10
N0172	16 H200	1F	STEEL	16	64.68	70	45	-	59	70	11	30	1.34
N0173	18 H200	1F	STEEL	18	72.77	79	55	-	59	70	14	36	1.65
N0174	19 H200	1F	STEEL	19	76.81	83	60	-	59	70	14	40	1.90
N0175	20 H200	1F	STEEL	20	80.85	87	62	-	59	70	14	41	2.11
N0176	21 H200	1F	STEEL	21	84.89	91	65	-	59	70	14	43	2.23
N0177	22 H200	1F	STEEL	22	88.94	93	68	-	59	70	14	45	2.45
N0178	24 H200	1F	STEEL	24	97.02	102	72	-	59	70	14	47	2.97
N0179	26 H200	1F	STEEL	26	105.11	112	80	-	59	70	14	54	3.61
N0180	28 H200	1F	STEEL	28	113.19	120	80	-	59	70	14	54	4.10
N0181	30 H200	1F	STEEL	30	121.29	128	80	-	59	70	14	54	4.74
N0182	32 H200	1F	STEEL	32	129.36	135	80	-	59	70	14	54	5.60
N0183	36 H200	1F	STEEL	36	145.53	150	80	-	59	70	14	48	7.10
N0184	40 H200	1F	STEEL	40	161.70	168	80	-	59	70	14	48	8.40
N0185	44 H200	2F	CAST IRON	44	177.87	184	80	150	59	70	19	48	9.50
N0186	48 H200	2F	CAST IRON	48	194.04	200	90	166	59	15	24	54	10.50
N0187	60 H200	2	CAST IRON	60	242.55	-	90	215	59	75	24	54	11.00
N0188	72 H200	2	CAST IRON	72	291.06	-	100	263	59	75	28	62	14.00
N0189	84 H200	2	CAST IRON	84	339.576	-	120	312	59	75	28	62	15.00
N0190	96 H200	2	CAST IRON	96	388.08	-	120	360	59	75	28	70	20.30
N0191	120 H200	2	CAST IRON	120	485.10	-	120	458	59	75	28	70	28.00

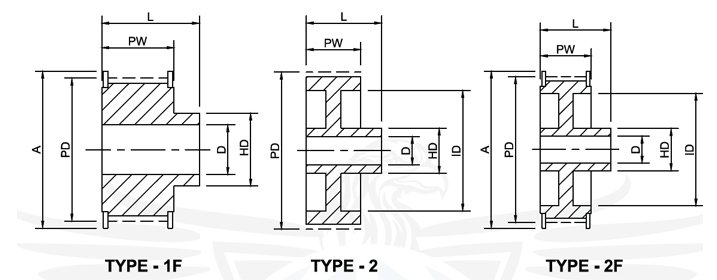

H(1/2”) Plain Bore timing Pulley Ref. H200.pdf
