H (1 / 2”) 150 Taper Lock Bush Timing Pulley

H (1 / 2”) Taper Lock Bush Timing Pulley Ref. H150

Taper Lock Bush Timing Pulley Ref. H150

Technical Specifications

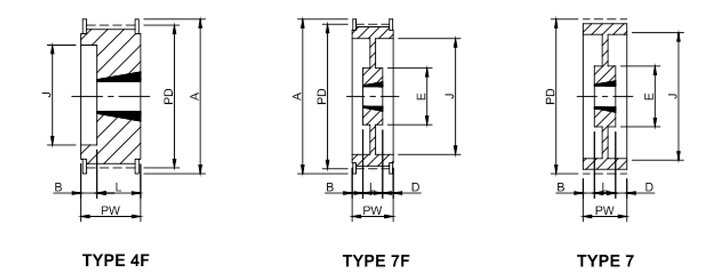

PART NO PULLEY SIZE PULLEY TYPE BUSH NO MATERIAL NO. OF TEETH MAX BORE (MB) PD A PW J B L D E APPROX WEIGHT (kg)
N0772 18H150 4F 1210 C.I. / FG200 18 32 72.77 79 45 52 20 25 - - 1.45
N0773 19H150 4F 1210 C.I. / FG200 19 32 76.81 83 45 56 20 25 - - 1.55
N0774 20H150 4F 1210 C.I. / FG200 20 32 80.95 87 45 60 20 25 - - 1.70
N0776 22H150 4F 1210 C.I. / FG200 22 32 88.94 95 45 67 20 25 - - 2.07
N0777 23H150 4F 1610 C.I. / FG200 23 42 92.98 98 5 70 20 25 - - 2.28
N0778 24H150 4F 1610 C.I. / FG200 24 42 97.02 103 45 74 20 25 - - 2.50
N0779 25H150 4F 1610 C.I. / FG200 25 42 101.06 106 45 77 20 25 - - 2.71
N0780 26H150 4F 1610 C.I. / FG200 26 42 105.11 112 45 82 20 25 - - 2.99
N0781 27H150 4F 1610 C.I. / FG200 27 42 109.15 115 45 85 20 25 - - 3.15
N0782 28H150 4F 1610 C.I. / FG200 28 42 113.19 120 45 91 20 25 - - 3.39
N0783 30H150 4F 1610 C.I. / FG200 30 42 121.28 128 45 98 20 25 - - 3.86
N0784 32H150 7F 1610 C.I. / FG200 32 42 129.36 135 45 106 10 25 10 80 4.37
N0785 36H150 7F 1610 C.I. / FG200 36 42 145.53 151 45 121 10 25 10 92 5.50
N0786 40H150 7F 1610 C.I. / FG200 40 42 161.70 168 45 138 10 25 10 92 6.80
N0787 44H150 7F 2012 C.I. / FG200 44 50 177.87 184 45 152 6.5 32 6.5 92 8.50
N0788 48H150 7F 2012 C.I. / FG200 48 50 194.04 200 45 169 6.5 32 6.5 106 8.80
N0789 60H150 7 2012 C.I. / FG200 60 50 242.55 - 46 223 7 32 7 106 9.00
N0790 72H150 7 2012 C.I. / FG200 72 50 291.06 - 46 270 7 32 7 106 11.00
N0791 84H150 7 2012 C.I. / FG200 84 50 339.57 - 46 320 7 32 7 106 13.00
N0792 96H150 7 2517 C.I. / FG200 96 60 388.08 - 45 366 - 45 - 119 17.00
N0793 120H150 7 2517 C.I. / FG200 120 60 485.10 - 45 462 - 45 - 119 25.00
