AT5 16W Plain Bore timing Pulley Ref. AT5 16W
![at5-16](images/product/plain-bore/at5-16.jpg)

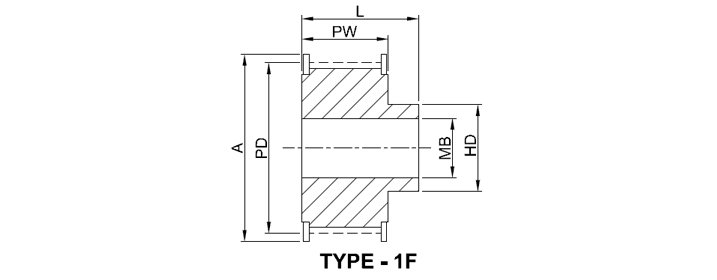

Technical Specifications
Part No | Pulley Size | Pulley Type | Material | No. Of Teeth | Pd | A | Hd | Pw | L | MIN Bore (MB) | Max Bore | APPROX WEIGHT (Kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
N1077 | 27 AT5/12-2 | 1F | ALUMINIUM | 12 | 19.01 | 23.00 | 11.00 | 21.00 | 27.00 | 4.00 | 6.00 | 0.02 |
N1078 | 27 AT5/14-2 | 1F | ALUMINIUM | 14 | 22.29 | 25.00 | 14.00 | 21.00 | 27.00 | 4.00 | 8.00 | 0.03 |
N1079 | 21 AT5/15-2 | 1F | ALUMINIUM | 15 | 23.88 | 28.00 | 16.00 | 21.00 | 27.00 | 6.00 | 10.00 | 0.03 |
N1080 | 27 AT5/16-2 | 1F | ALUMINIUM | 16 | 25.47 | 32.00 | 18.00 | 21.00 | 27.00 | 6.00 | 11.00 | 0.04 |
N1081 | 27 AT5/18-2 | 1F | ALUMINIUM | 18 | 28.65 | 32.00 | 20.00 | 21.00 | 27.00 | 6.00 | 12.00 | 0.04 |
N1082 | 27 AT5/19-2 | 1F | ALUMINIUM | 19 | 30.25 | 36.00 | 22.00 | 21.00 | 27.00 | 6.00 | 12.00 | 0.05 |
N1083 | 27 AT5/20-2 | 1F | ALUMINIUM | 20 | 31.83 | 36.00 | 23.00 | 21.00 | 27.00 | 6.00 | 14.00 | 0.06 |
N1084 | 27 AT5/22-2 | 1F | ALUMINIUM | 22 | 35.12 | 38.00 | 24.00 | 21.00 | 27.00 | 6.00 | 15.00 | 0.06 |
N1085 | 27 AT5/24-2 | 1F | ALUMINIUM | 24 | 38.12 | 42.00 | 26.00 | 21.00 | 27.00 | 6.00 | 15.00 | 0.08 |
N1086 | 27 AT5/25-2 | 1F | ALUMINIUM | 25 | 39.80 | 44.00 | 26.00 | 21.00 | 27.00 | 6.00 | 15.00 | 0.08 |
N1087 | 27 AT5/26-2 | 1F | ALUMINIUM | 26 | 41.47 | 44.00 | 26.00 | 21.00 | 27.00 | 6.00 | 16.00 | 0.09 |
N1088 | 27 AT5/27-2 | 1F | ALUMINIUM | 27 | 42.98 | 48.00 | 30.00 | 21.00 | 27.00 | 8.00 | 18.00 | 0.09 |
N1089 | 27 AT5/28-2 | 1F | ALUMINIUM | 28 | 44.62 | 48.00 | 32.00 | 21.00 | 27.00 | 8.00 | 18.00 | 0.09 |
N1090 | 27 AT5/30-2 | 1F | ALUMINIUM | 30 | 47.76 | 51.00 | 34.00 | 21.00 | 27.00 | 8.00 | 18.00 | 0.10 |
N1091 | 27 AT5/32-2 | 1F | ALUMINIUM | 32 | 50.94 | 54.00 | 36.00 | 21.00 | 27.00 | 8.00 | 22.00 | 0.12 |
N1092 | 27 AT5/36-2 | 1F | ALUMINIUM | 36 | 57.31 | 64.00 | 38.00 | 21.00 | 27.00 | 8.00 | 22.00 | 0.16 |
N1093 | 27 AT5/40-2 | 1F | ALUMINIUM | 40 | 63.66 | 66.00 | 40.00 | 21.00 | 27.00 | 8.00 | 23.00 | 0.19 |
N1094 | 27 AT5/42-2 | 1F | ALUMINIUM | 42 | 66.87 | 70.00 | 40.00 | 21.00 | 27.00 | 8.00 | 24.00 | 0.20 |
N1095 | 27 AT5/44-2 | 1F | ALUMINIUM | 44 | 70.07 | 75.00 | 45.00 | 21.00 | 27.00 | 8.00 | 26.00 | 0.23 |
N1096 | 27 AT5/48-2 | 1F | ALUMINIUM | 48 | 76.42 | 82.00 | 50.00 | 21.00 | 27.00 | 8.00 | 28.00 | 0.28 |
N1097 | 27 AT5/60-2 | 1F | ALUMINIUM | 60 | 95.52 | 101.00 | 65.00 | 21.00 | 27.00 | 8.00 | 35.00 | 0.43 |
