AT10 16W Plain Bore timing Pulley Ref. AT10 16W
Technical Specifications

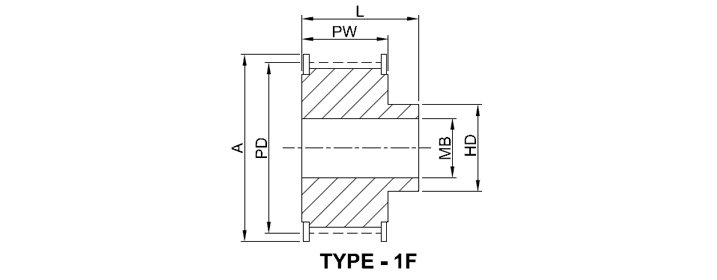

| Part No | Pulley Size | Pulley Type | Material | No. Of Teeth | Pd | A | Hd | Pw | L | MIN Bore (MB) | Max Bore | APPROX WEIGHT (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N1119 | 31 AT10/15-2 | 1F | ALUMINIUM | 15 | 47.75 | 51.00 | 32.00 | 21.00 | 31.00 | 8.00 | 18.00 | 0.12 |
| N1120 | 31 AT10/16-2 | 1F | ALUMINIUM | 16 | 50.93 | 54.00 | 35.00 | 21.00 | 31.00 | 8.00 | 20.00 | 0.13 |
| N1121 | 31 AT10/18-2 | 1F | ALUMINIUM | 18 | 57.29 | 60.00 | 40.00 | 21.00 | 31.00 | 8.00 | 22.00 | 0.17 |
| N1122 | 31 AT10/19-2 | 1F | ALUMINIUM | 19 | 60.48 | 66.00 | 44.00 | 21.00 | 31.00 | 8.00 | 22.00 | 0.18 |
| N1123 | 31 AT10/20-2 | 1F | ALUMINIUM | 20 | 63.66 | 66.00 | 46.00 | 21.00 | 31.00 | 8.00 | 24.00 | 0.21 |
| N1124 | 31 AT10/22-2 | 1F | ALUMINIUM | 22 | 70.03 | 75.00 | 52.00 | 21.00 | 31.00 | 8.00 | 28.00 | 0.25 |
| N1125 | 31 AT10/24-2 | 1F | ALUMINIUM | 24 | 76.39 | 83.00 | 58.00 | 21.00 | 31.00 | 8.00 | 30.00 | 0.29 |
| N1126 | 31 AT10/25-2 | 1F | ALUMINIUM | 25 | 79.58 | 83.00 | 60.00 | 21.00 | 31.00 | 8.00 | 30.00 | 0.31 |
| N1127 | 31 AT10/26-2 | 1F | ALUMINIUM | 26 | 82.76 | 87.00 | 60.00 | 21.00 | 31.00 | 8.00 | 30.00 | 0.36 |
| N1128 | 31 AT10/27-2 | 1F | ALUMINIUM | 27 | 85.95 | 91.00 | 60.00 | 21.00 | 31.00 | 8.00 | 30.00 | 0.37 |
| N1129 | 31 AT10/28-2 | 1F | ALUMINIUM | 28 | 89.13 | 93.00 | 60.00 | 21.00 | 31.00 | 8.00 | 30.00 | 0.40 |
| N1130 | 31 AT10/30-2 | 1F | ALUMINIUM | 30 | 95.49 | 97.00 | 60.00 | 21.00 | 31.00 | 8.00 | 30.00 | 0.44 |
| N1131 | 31 AT10/32-2 | 1F | ALUMINIUM | 32 | 101.86 | 106.00 | 65.00 | 21.00 | 31.00 | 10.00 | 32.00 | 0.49 |
| N1132 | 31 AT10/36-2 | 1F | ALUMINIUM | 36 | 114.59 | 120.00 | 70.00 | 21.00 | 31.00 | 10.00 | 35.00 | 0.77 |
| N1133 | 31 AT10/40-2 | 1F | ALUMINIUM | 40 | 127.32 | 135.00 | 80.00 | 21.00 | 31.00 | 10.00 | 40.00 | 0.95 |
| N1134 | 31 AT10/44-2 | 1F | ALUMINIUM | 44 | 140.06 | 145.00 | 88.00 | 21.00 | 31.00 | 10.00 | 46.00 | 1.00 |
| N1135 | 31 AT10/48-2 | 1F | ALUMINIUM | 48 | 152.78 | 158.00 | 95.00 | 21.00 | 31.00 | 16.00 | 48.00 | 1.10 |
| N1136 | 31 AT10/60-2 | 1F | ALUMINIUM | 60 | 190.98 | 196.00 | 110.00 | 21.00 | 31.00 | 16.00 | 60.00 | 1.70 |
