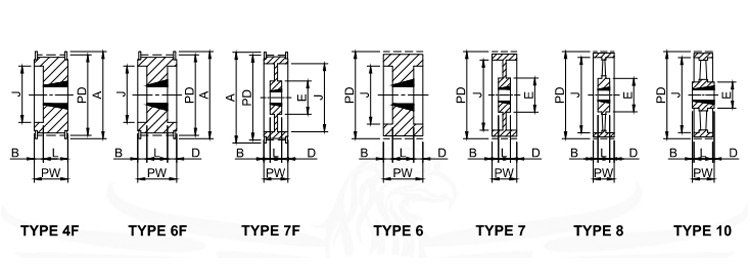

PART NO	PULLEY SIZE	PULLEY TYPE	BUSH NO	MATERIAL	NO. OF TEETH	MAX BORE (MB)	PD	A	PW	J	B	L	D	E	APPROX WEIGHT (kg)
N0640	28-8M-50	4F	1210	C.I. / FG200	28	32	71.30	75	60	50	35	25	-	-	0.60
N0641	30-8M-50	4F	1615	C.I. / FG200	30	42	76.39	83	60	58	22	38	-	-	0.65
N0642	32-8M-50	4F	1615	C.I. / FG200	32	42	81.49	87	60	63	22	38	-	-	0.82
N0643	34-8M-50	4F	1615	C.I. / FG200	34	42	86.58	91	60	65	22	38	-	-	1.06
N0644	36-8M-50	4F	1615	C.I. / FG200	36	42	91.67	97	60	68	22	38	-	-	1.30
N0645	38-8M-50	4F	1615	C.I. / FG200	38	42	96.77	102	60	72	22	38	-	-	1.60
N0646	40-8M-50	6F	2012	C.I. / FG200	40	50	101.86	106	60	80	14	32	14	-	1.71
N0647	44-8M-50	6F	2012	C.I. / FG200	44	50	112.05	120	60	86	14	32	14	-	1.78
N0648	48-8M-50	6F	2012	C.I. / FG200	48	50	122.23	128	60	95	14	32	14	-	2.30
N0649	56-8M-50	6F	2517	C.I. / FG200	56	60	142.60	150	60	116	7.5	45	7.5	-	3.40
N0650	64-8M-50	6F	2517	C.I. / FG200	64	60	162.97	168	60	136	7.5	45	7.5	-	5.00
N0651	72-8M-50	7F	2517	C.I. / FG200	72	60	183.35	192	60	158	7.5	45	7.5	125	6.70
N0652	80-8M-50	6	3020	C.I. / FG200	80	75	203.72	-	60	180	4.5	51	4.5	-	8.80
N0653	90-8M-50	7	3020	C.I. / FG200	90	75	229.18	-	60	204	4.5	51	4.5	160	10.00
N0654	112-8M-50	7	3020	C.I. / FG200	112	75	285.21	-	60	254	4.5	51	4.5	170	12.00
N0655	144-8M-50	8	3020	C.I. / FG200	144	75	366.96	-	60	336	4.5	51	4.5	170	15.20
N0656	168-8M-50	10	3525	C.I. / FG200	168	100	472.81	-	60	395	2.5	65	2.5	198	17.50
N0657	192-8M-50	10	3525	C.I. / FG200	192	100	488.92	-	60	455	2.5	65	2.5	198	24.00

8M Taper Lock Bush Timing Pulley Ref. 8M 50.pdf
