5M Taper Lock Bush Timing Pulley Ref. 5M 15
Technical Specifications

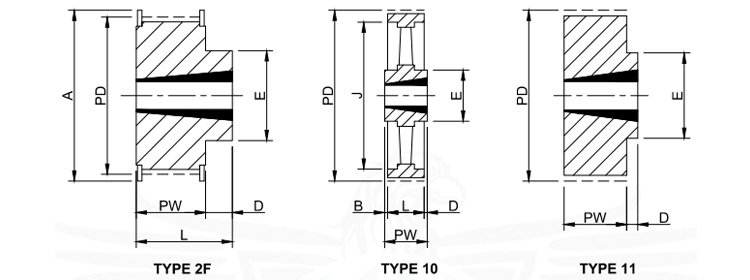

PART NO | PULLEY SIZE | PULLEY TYPE | BUSH NO | MATERIAL | NO. OF TEETH | MAX BORE (MB) | PD | A | PW | J | B | L | D | E | APPROX WEIGHT (kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N0591 | 34-5M-15 | 2F | 1008 | C.I. / FG200 | 34 | 25 | 54.11 | 57 | 22 | - | - | 22 | - | - | 0.23 |
N0592 | 36-5M-15 | 2F | 1108 | C.I. / FG200 | 36 | 28 | 57.30 | 60 | 22 | - | - | 22 | - | - | 0.23 |
N0593 | 38-5M-15 | 2F | 1108 | C.I. / FG200 | 38 | 28 | 60.48 | 67 | 22 | - | - | 22 | - | - | 0.29 |
N0594 | 40-5M-15 | 2F | 1108 | C.I. / FG200 | 40 | 28 | 63.66 | 71 | 22 | - | - | 22 | - | - | 0.38 |
N0595 | 44-5M-15 | 2F | 1108 | C.I. / FG200 | 44 | 28 | 70.03 | 75 | 22 | - | - | 22 | - | - | 0.48 |
N0596 | 48-5M-15 | 2F | 1210 | C.I. / FG200 | 48 | 32 | 76.39 | 83 | 22 | - | - | 22 | - | - | 0.50 |
N0597 | 56-5M-15 | 2F | 1210 | C.I. / FG200 | 56 | 32 | 89.13 | 93 | 22 | - | - | 25 | 3 | 75 | 0.66 |
N0598 | 64-5M-15 | 2F | 1210 | C.I. / FG200 | 64 | 32 | 101.86 | 106 | 22 | - | - | 25 | 3 | 80 | 0.85 |
N0599 | 72-5M-15 | 11 | 1610 | C.I. / FG200 | 72 | 42 | 114.59 | - | 22 | - | - | 25 | 3 | 92 | 1.25 |
N0600 | 80-5M-15 | 11 | 1610 | C.I. / FG200 | 80 | 42 | 127.32 | - | 22 | - | - | 25 | 3 | 92 | 1.70 |
N0601 | 90-5M-15 | 10 | 1610 | C.I. / FG200 | 90 | 42 | 143.24 | - | 22 | 126 | - | 25 | 3 | 92 | 2.25 |
N0602 | 112-5M-15 | 10 | 2012 | C.I. / FG200 | 112 | 50 | 178.25 | - | 22 | 160 | - | 32 | 10 | 110 | 3.20 |
N0603 | 136-5M-15 | 10 | 2012 | C.I. / FG200 | 136 | 50 | 216.45 | - | 22 | 199 | - | 32 | 10 | 110 | 3.60 |
