Plain Bore Timing Pulley Manufacturer

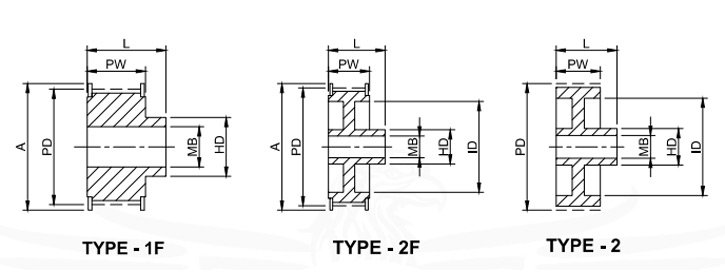

PART NO	PULLEY SIZE	PULLEY TYPE	MATERIAL	NO. OF TEETH	PD	A	HD	ID	PW	L	MIM BORE (D)	MAX BORE	APPROX WEIGHT (kg)
N0505	28-14M-40	1F	STEEL	28	124.78	128	100	-	54.0	69.0	24.0	67.0	4.80
N0506	30-14M-40	1F	STEEL	30	133.69	138	100	-	54.0	69.0	24.0	67.0	5.60
N0507	32-14M-40	1F	STEEL	32	142.60	154	100	-	54.0	69.0	24.0	67.0	6.20
N0508	34-14M-40	1F	STEEL	34	151.52	160	100	-	54.0	69.0	24.0	67.0	6.90
N0509	36-14M-40	1F	STEEL	36	160.43	168	100	-	54.0	69.0	24.0	67.0	7.70
N0510	38-14M-40	1F	STEEL	38	169.34	184	120	-	54.0	69.0	24.0	80.0	8.28
N0511	40-14M-40	1F	STEEL	40	178.25	188	120	-	54.0	69.0	24.0	80.0	9.26
N0512	44-14M-40	1F	STEEL	44	196.08	212	120	-	54.0	69.0	24.0	80.0	10.32
N0513	48-14M-40	2F	CAST IRON	48	213.90	226	135	170	54.0	69.0	24.0	82.0	11.50
N0514	56-14M-40	2F	CAST IRON	56	249.55	256	135	207	54.0	69.0	28.0	82.0	13.05
N0515	64-14M-40	2F	CAST IRON	64	285.21	296	135	240	54.0	69.0	28.0	82.0	14.40
N0516	72-14M-40	2	CAST IRON	72	320.86	-	135	278	54.0	69.0	28.0	82.0	16.90
N0517	80-14M-40	2	CAST IRON	80	356.51	-	135	314	54.0	69.0	28.0	82.0	18.50
N0518	90-14M-40	2	CAST IRON	90	401.07	-	135	358	54.0	69.0	28.0	82.0	20.00
N0519	112-14M-40	2	CAST IRON	112	499.11	-	135	456	54.0	69.0	28.0	82.0	26.70
N0520	144-14M-40	2	CAST IRON	144	641.71	-	135	600	54.0	69.0	28.0	82.0	35.00
N0521	168-14M-40	2	CAST IRON	168	748.66	-	135	706	54.0	69.0	28.0	82.0	44.20
N0522	192-14M-40	2	CAST IRON	192	855.62	-	135	813	54.0	69.0	28.0	82.0	52.20

14M Plain Bore Timing Pulley Ref. 14M 40.pdf
